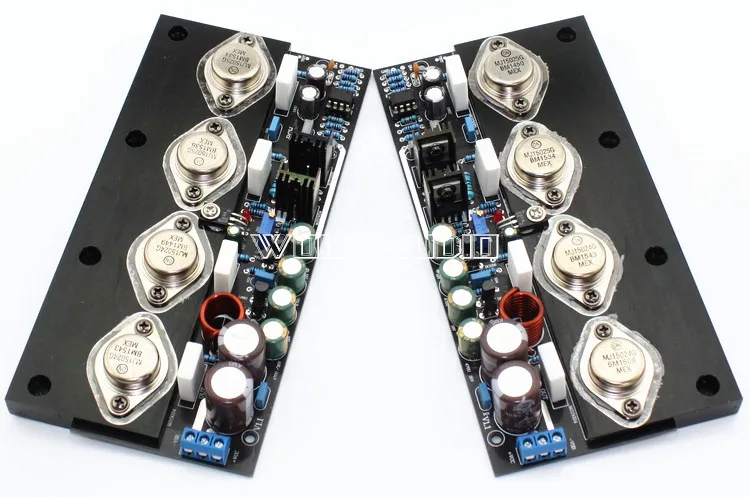

- This is 2pcs amplifier board price
- Using original ON MJ15024, MJ15025
- Capacitance 2 × 470UF / 100V
- The current advanced UPC1237 speaker protection circuit, make your speakers more secure
- Using CNC machining centers radiator
- Supply voltage: DC + -25V to + -35V
- Output Power: 20W @ 8 Ohms/ 40W @ 4 ohms/ 80W @ 2 ohms
- Speaker Impedance: 2-8 Ohm
- PCB size: 181 * 65MM
- Amplifier board X2
To reduce the number of each customer installation radiator, the plate adopts carved radiator aluminum CNC machining center, but also need in and big radiator, or it will burn out because of the insufficient heat dissipation
There amplifier board test points TEST, white power resistance from 0.22 ohm found that measuring point is 22MV TEST, then static is to 100MAX2 = 200MA, X2 is because the tubes in parallel. Measured as 130MV, then close the static 1A. Clockwise reduces quiescent current, counter-clockwise to increase the static
