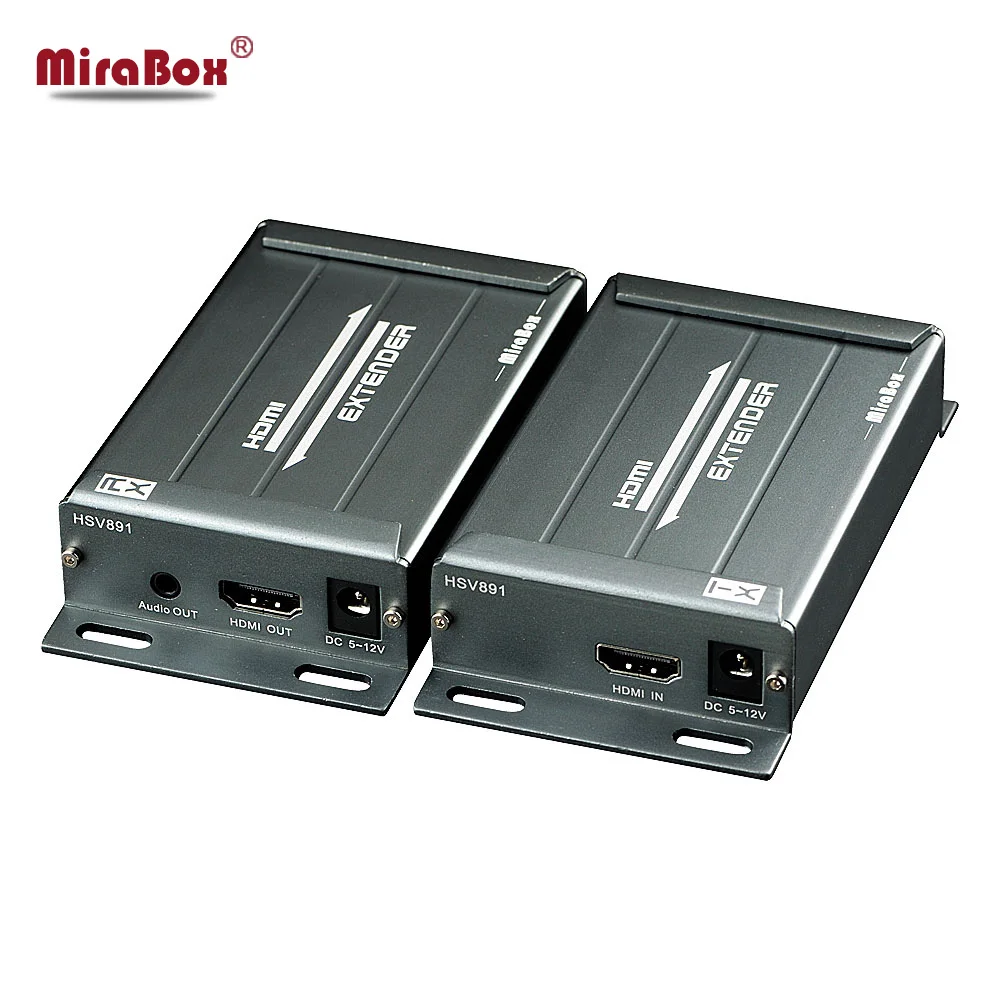

HDMI transmitter and receiver over IP with audio extractor support 1080p 150m transmission support multi-receiver
- We are original vendor.
- We only sale the products we developed and manufactured.
- We are not only providing products, we also providing ODM/OEM service and solution.
Your new ideas and requirement are always welcomed.
Please noted that this price is for 1 pcs Transmitter(TX) and 1 pcs receivers(RX).
And this product support one sender to multi-receivers, if you have many monitors, you can buy more receivers.
USD 194.99/lotUSD 259.99/lotUSD 324.99/lotUSD 389.99/lotUSD 454.99/lotUSD 399.00/pieceUSD 89.99/pairUSD 49.99-99.98/pack
This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers. 1.HSV891 also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket. 2.HSV891 have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, PoE, mountable aluminum alloy shieding.
1. Apply M-JPEG technology to process image compressing. The loss of image quality is very small; Supported HDMI format: 480i@50Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz 1080p@24Hz . 2. Powerful processing capability keep lower video latency < 150ms. 3. HDCP compatible. 4. It can transmit HDMI 1080P signal to above 120m by using UTP Cat5e/6. 5. It can transmit by Lan. 6. Support Lan bandwidth: 100M 7. Extend 120m longer by adding one more ethernet router 8. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km. 9. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers. 10. Integrated HDMI audio extractor output HDMI audio. 11. Supports 5V-12V wide range power supply. 12. Supports PoE function over maxim 150meter.
Power Supply:1pc X DC 5~12V/1A Resolution Supported: 1080p@50Hz / 1080p@60Hz / 1080p@24Hz 1080i@50Hz / 1080i@60Hz 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz Working Temperature: -10°C ~ 60°C Link Connection: UTP/STP CAT5/5e/6 3.5mm Audio Output: 60mW THD<0.1% SNR 110dB Power Consumption: 3W(max)each Working Mode: *Point to Point mode *Broadcast mode( Point to MultiPoint) *Cascade mode Transfer Distance: *Point to Point Mode: CAT5 100meters CAT5e 120meters CAT6 150meters *Cascade Mode: 20Km maximum *PoE Distance: CAT5 100meters@12V CAT5e 120meters@12V CAT6 150meters@12V Relative Humidity: 20% ~ 90% RH(Non-condensing) Dimensions: 123x64x25mm Weight : 110g
1) Sender x 1 2) Receiver X1 3) Manunal X1 4) 5V Power adapter X2
Shipment 1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO) 2. Orders processed timely after the payment verification. 3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address. 4. The images shown are not the actual item and are for your reference only. 5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. 6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! 7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery. 8. Delivery Methods: Guarantee 1. 12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty. 2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. We do not repair or replace items with an expired warranty. 3. You agree to all of the above-listed policies upon ordering on aliexpress! Feedback 1. Our success depends on your satisaction,therefore,your feedback is extremely important for us. 2. We request that you contact us immediately before you give us neutral or negative feedback, so that we can satisfactorily address your concerns.Thanks! 3. If you satisfy,please leave us five star positive feedback; if you not satisfy,please contact us before give us any neutral, negative feedback or open dispute,we will offer our best service untill you satisfy.
